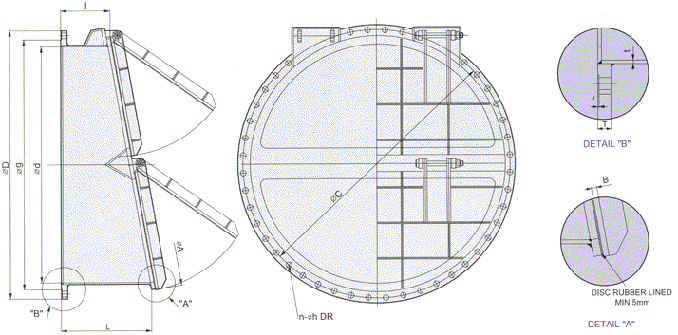

Flap Valve
Product Range

Designed for preventing reversal of flow at pipe outlet.

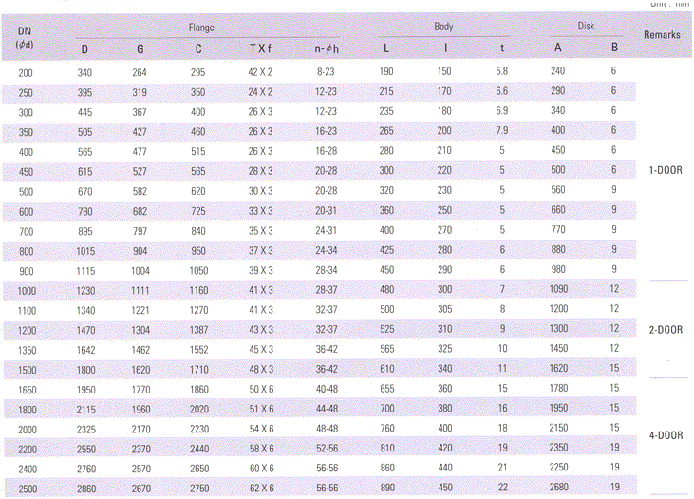

SPECIFICATION

1. SIZE : Nominal Dia. 200mm ~ 3,000mm

2. WORKING PRESSURE : Max. 7.5 kgf/cm2

3. VALVE END
   Flange (KS D4309, KS D3578)
   Other standards are available on request.

4. FLUID : Service Water

5. MAIN MATERIAL
   Body : Cast Iron (GC200), Steel Plate (SS400)
   Disc : Cast Iron (GC200), Steel Plate (SS400)
   PIN : Stainless steel (STS304, STS403)
   SEAT : Rubber

Product Range   [top]

MATERIAL

CAST IRON,

DUCTILE IRON

CAST CARBON STEEL
etc.
SIZE 80A ~ 350A
