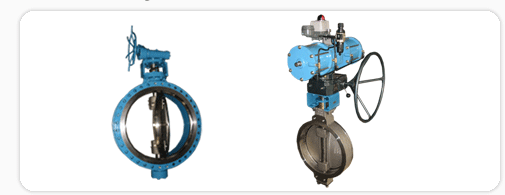

Valve Type : High Performance Butterfly Valve
(Sold Metal Seat)
Connection : Wafer / Lugged /
Flanged / Butt-Weld
Pressure Rating : Max 25kg/§²
Size Range : DN 50 - 1200
Valve Operator : Wrench / Worm Gear / Pneumatic Actuator / Motor Actuator
For tight shut-off and throttling services
Working Temperature.: -10 to +450 ¡É
Double Offset Shaft (Double Eccentric) / To Reducing Wear On Seat Components
Free Access To Stuffing Box And Gland
Optional "Fire Safe" Design To BS 6755 / API 607
End conn.: ISO PN 10/16/25, JIS 10K 16K, ANSI 150
Face To Face ; API 609-B / ISO 5752-Series 25 / ANSI B16.10
Item
Material
Body
A216 WCB, A351 CF8/CF8M/CF3/CF3M etc
Disk
Stainless Steel, AL-Bronze, etc
Seat
Stainless Steel (SS 316)
Stem
Stainless Steel, Monel etc
Type
Description
Pressure
Test Medium
Body Test
Ambient temperature
...kg/§² & times :1.5
Water
Seat Test
At working pressure
...kg/§² & times :1.1
Water
HVAC and air conditioning technology, industrial installations
Petro-Chemical Industry, Shipbuilding, District Heating / Steam Service
