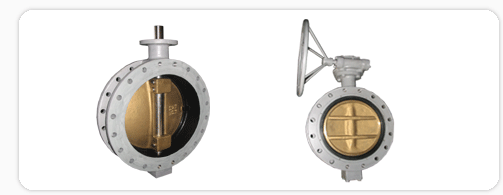

Valve Type : High Performance Butterfly Valve
(Cargo Oil System For Marine)
Connection : Wafer / Lugged /
Flanged
Pressure Rating : Max 25kg/§²
Size Range : DN 80 - 800
Valve Operator : Wrench / Worm Gear / Pneumatic Actuator / Motor Actuator
For tight shut-off and throttling services
Full seat pressure rating. Bi-directional
Double Offset Shaft (Double Eccentric) / To Reducing Wear On Seat Components
Working Temperature.: -10 to +200 ¡É
End conn.: ISO PN 6/10/16/25, JIS 5K/10K/16K, ANSI 150
Face To Face ; JIS F 7480, ISO 5752
Item
Material
Body
Cast Steel, Stainless Steel
Disk
Stainless Steel, AL-Bronze etc
Seat
NBR, EPDM
Stem
Stainless Steel, Monel etc
Type
Description
Pressure
Test Medium
Body Test
Ambient temperature
...kg/§² & times :1.5
Water
Seat Test
At working pressure
...kg/§² & times :1.1
Water
Shipbuilding : Fresh Water, Seawater ,OIL TANK etc
(Petro)-Chemical Industry
