Ball Valve : 3-Way Ball Valve

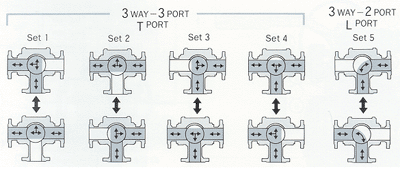

3-Way T-Type Ball Valve | Product Range


STANDARD DESIGN

a) Max Design Pressure : 24 kgf/cm2
b) Max Design Temp. : 220 degree
c) Service name : Nylon Chip, Polyester chip, Powder, Water, Oils and Other Sludge
d) Pneumatic operated Air Press. : 4 kgf/cm2 ~ 6 kgf/cm2
e) Pneumatic Accessories (Water Proof & Explosion Proof)
  • Solenoid v/v
  • Limit Switch
  • Air Unit
  • Speed Controller
f) Manual Lever, Gear Operated
g) Motor Operated

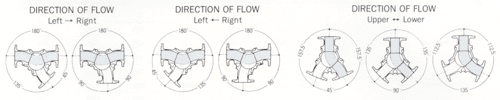

3-Way T-Type Ball Valve   [top]

STANDARD DESIGN

a) Design Pressure : 0.1 ~ 24 kgf/cm2
b) Design Temp. : -20 ~ 220 degree
c) Service name : Water, Oils, Gases, Chemicals, ect.
d) Pneumatic operated Press. : 4 kgf/cm2 ~ 6 kgf/cm2
e) Pneumatic Accessories (Water Proof & Explosion Proof)
  • Solenoid v/v
  • Limit Switch
  • Air Unit
  • Speed Controller
f) Manual Lever, Gear Operated

MATERIAL SPECIFICATION

No. Part Name Material
1 Body Stainless Steel
2 Flange Piece Stainless Steel
3 Cover Stainless Steel
4 Ball Stainless Steel
5 Stem Stainless Steel
6 Seat Ring Teflon (Glass 115%)
7 Packing Teflon
8 Gasket Teflon
9 Gasket Teflon
10 Washer Stainless Steel
11 Gland Stainless Steel
12 Stopper Stainless Steel
13 Piece Bolt Stainless Steel
14 Cover Bolt Stainless Steel
15 Bearing Bush Teflon
16 Gasket Asbestos
17 Trunnion Stainless Steel
18 Gland Bolt Stainless Steel
19 Snap Ring Carbon Steel (w / Ni Coat')
20 Hand Lever Ductile Iron

Product Range   [top]

MATERIAL A216 WCB
A217 WC6, WC9, C5, C12
A352 LCB, LC1, LC2, LC3
A351 CF8, CF8M, CF3, CF3M
etc.
CLASS

150#
SIZE 2"~ 12"
